Hot Selling Cosmetic Treatment Pumps

Packaging Procurement | An Article to Help You Quickly Grasp the Technical Principles, Production Processes and Application Scenarios of Lotion Pumps in Detail

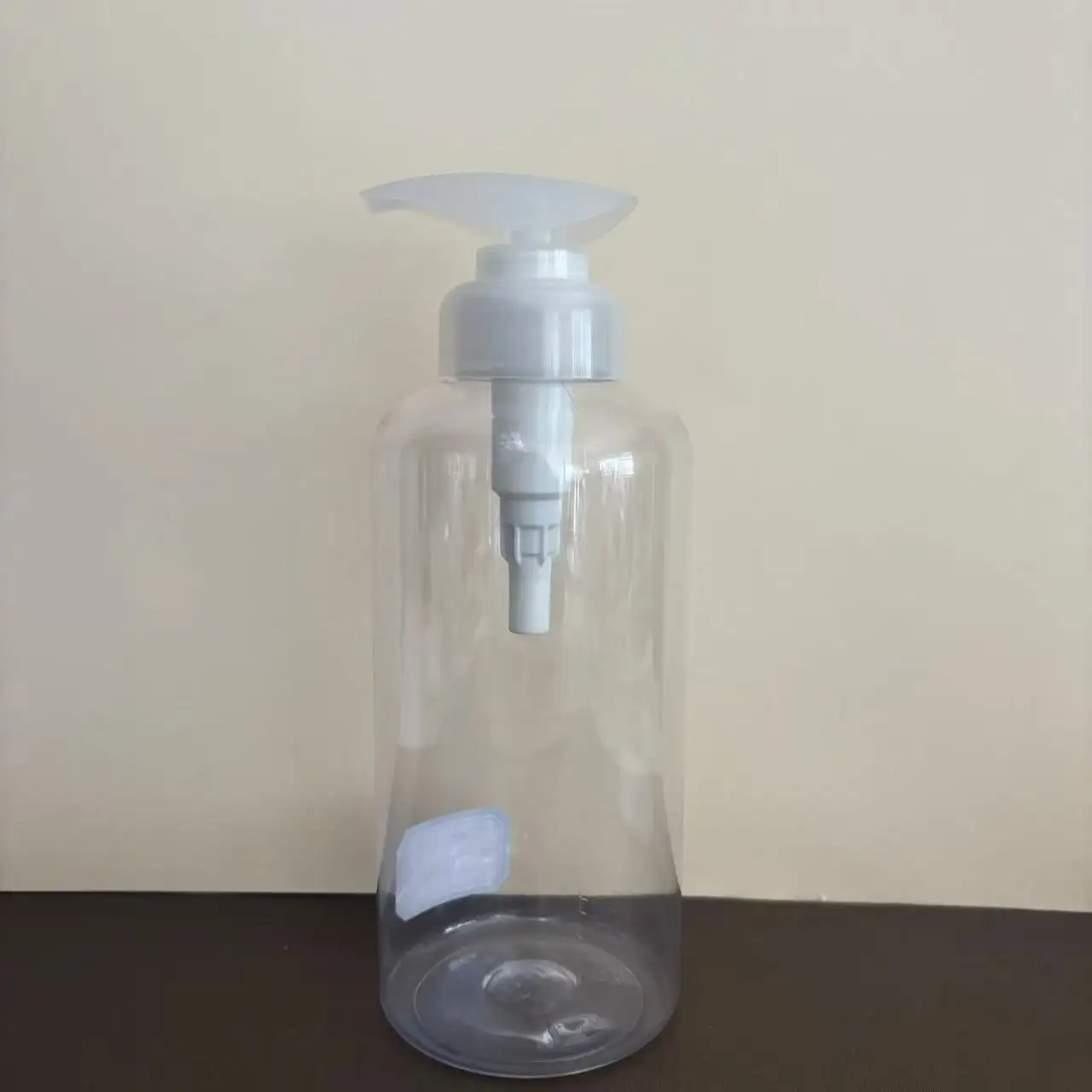

1.Definition of Lotion Pump: A lotion pump is a liquid quantitative distribution device widely used in daily chemical, pharmaceutical and other fields. It realizes precise control and output of liquids through a precision mechanical structure. It is a main supporting tool for taking out contents in cosmetic containers. It is a liquid distributor that uses the principle of atmospheric balance to pump out the liquid in the bottle by pressing and replenish the outside air into the bottle.


2.Product Structure and Manufacturing Process
（1）Structural Components


A conventional lotion pump head is usually composed of components such as a pressing nozzle/head, upper pump column, locking cap, gasket, bottle cap, pump plug, lower pump column, spring, pump body, glass ball, and suction tube. Depending on the structural design requirements of different pumps, the relevant components may vary, but their principles and ultimate purposes are consistent, which is to effectively take out the contents.

（2）Production Process


The majority of pump head components are primarily made from plastic materials such as PE, PP, and LDPE through injection molding. The main components of the pump head can undergo processes such as electroplating, anodized aluminum coating, spraying, and injection coloring.

3.Description of Pump Head Structure
（1）Product Classification Lotion pumps consist of core components including pump heads, pistons, springs, bottle caps, suction tubes, and locking rings.
- Conventional diameters: Ф18, Ф20, Ф22, Ф24, Ф28, Ф33, Ф38, etc.

- Classified by structure: external spring pump, plastic spring pump

- Classified by pumping volume: 0.15/0.2cc, 0.5/0.7cc, 1.0/2.0cc, 3.5cc, 5.0cc, 10cc and above

（2）Performance Indicators
Key performance metrics include:

- Number of priming strokes

- Dispensing volume per stroke

- Pressing force required

- Torque for opening the pump head

- Rebound speed

- Inlet flow rate

（3）Difference Between Internal and External Springs
- External Spring: Does not contact the product, eliminating risk of contamination from rust.

（4）Quantitative Dispensing Mechanism
- Single-dose volume controlled by adjusting chamber size (typically 0.3–5mL) and piston stroke.

- Accuracy within ±5%, suitable for precise dispensing of various viscosities.

01 Select according to the caliber specifications of lotion pumps and bottles
Lotion pumps and bottle mouths are generally based on screw thread matching, and there is a common standard in the industry.Generally, suppliers produce lotion pumps according to this standard, and customers select lotion pumps according to this specification.Common calibers are 18mm, 20mm, 22mm, 24mm, 28mm, 33mm, and 38mm, and common specifications are 400, 410, and 415.



Standard example: Plastic Bottle Finish SP - 410



(List of common lotion pump size specifications)

Sealing test items in inspection and quality control, fill the bottle with colored water (or material body) according to product specifications, use the corresponding torque according to different calibers to match the pump head with the bottle, press the head in a locked state, place it horizontally, and vacuum test -0.03 ~ -0.06MPa/5min (different customers have different requirements). After the test, there is no leakage at the matching point between the bottle and the screw thread, the matching point between the body and the lock cover, and the pressing head. At the same time, it is required that the screw thread and the bottle mouth match smoothly without slipping, blocking, or skewing.



The bottle mouth is injection molded, the process is more stable, the mouth size and thread accuracy are higher, and it can meet higher sealing needs. For the bottle mouth structure of the product, the following aspects are generally considered:

First, the shape. Generally, the bottle mouth shape is designed to be round. The round shape is more conducive to ensuring the size accuracy of the bottle mouth, and better matches the lid for sealing and the distribution of the bottle body wall thickness during blow molding.



The second is the bottle mouth structure, which is generally divided into a threaded structure and a buckle structure. The threaded structure is more conducive to the sealing effect of the bottle and the lid. It is often used in pharmaceutical packaging, liquid beverages, and cosmetic bottle packaging. It is combined with various threaded caps, safety caps, nozzles, and pump heads, etc., and has high sealing reliability. The size and form of the thread can be flexibly selected according to product needs. The buckle structure is often used for solid or paste packaging, and can also be used for liquid packaging. The advantage is that it is easy to use and suitable for high-speed filling. However, when used as liquid packaging, attention should be paid to the design of the lid material, sealing structure, and interference, and process control should be done to ensure its sealing.



The third is the size of the bottle mouth. For PET, the bottle mouth size is relatively flexible, but for PP materials that are more suitable for molding wide-mouth bottles, the bottle mouth should not be too small, otherwise it will have a greater impact on the molding and wall thickness distribution of the product. Generally speaking, the ratio of the bottle body diameter to the bottle mouth diameter is less than 2 times.

02 Selection according to the characteristics of the viscosity/fluidity
Regarding the viscosity/fluidity of the liquid, the brand will have specific data, but for lotion pump manufacturers, these data are lacking.


Usually, the liquid can be poured into the beaker and judged according to the liquid surface condition:


(Diagram of bottle mouth size marking code)



A. The liquid surface can reach horizontal in an instant, and there is no trace on the liquid surface. All emulsion pumps and derivative pumps can be used. You only need to consider the characteristics of the liquid formula to choose the appropriate one.

B. The liquid surface can reach horizontal quickly, but there are slight traces of stacking on the liquid surface. The spray pump needs to verify its spray effect. Other emulsion pumps and derivative pumps can be used.



C. The liquid surface can reach horizontal in 1-2 seconds, and there are obvious traces of stacking on the liquid surface. It is necessary to use an emulsion pump with large suction and spring elasticity. High-viscosity pumps are preferred, followed by vacuum cans/bottles.

D. The liquid surface has obvious traces of stacking and cannot reach a horizontal state in a short time. High-viscosity pumps also need to be verified. Vacuum cans/bottles are preferred for packaging, or lid packaging is selected.





E. Invert the beaker containing the liquid. The liquid cannot be poured out in a short time. Only vacuum cans, or other packaging forms such as lids, hoses, cans, etc. can be used.

03 Select according to the compatibility of the lotion pump raw materials and the material body
Must be able to pass the compatibility test. Place the finished product that has been sprayed with liquid in a high-temperature box for 7 days, take it out and disassemble it to observe whether the parts are cracked, rusted, deformed, etc., and the liquid is not discolored or odor-changed. It is qualified.

04 Select according to the range of pumping volume
Before the product is launched on the market, there is generally a consumer survey link, and basically there will be a preliminary recommended usage. According to this usage, you can choose the specifications of the lotion pump, or the integer number of pumping times of the pumping volume reaches the recommended usage. Generally: recommended usage = (1-2) * pumping volume.


For example: if the recommended usage is 1.0 ml/time, you can choose a lotion pump with a pumping volume of 1.0 ml/time, or you can choose a lotion pump with a pumping volume of 0.5 ml/time.

05 Select according to the final packaging form

After confirming the packaging capacity, select the lotion pump specifications based on the size of the packaging capacity and the expected number of uses. Generally, the number of uses of a package is 100-300 times.





Example 1: A 100ml bottle has been confirmed, and the lotion pump can be selected with a 1.0ml/time lotion pump, which can be used about 100 times, or a 0.5ml/time lotion pump can be selected, which can be used about 200 times.



Example 2: A 500ml bottle has been confirmed, and the lotion pump can be selected with a 2.0ml/time lotion pump, which can be used about 250 times, or a 3.5ml/time lotion pump can be selected, which can be used about 140 times.

【Premium Solid Stick Packaging Solutions | Guangdong Hongyuan Dispensing Pump Co., Ltd.】



As demand grows for natural, portable, and beautifully designed personal care products, solid stick formats—such as deodorants, perfumes, and balms—are gaining momentum. Guangdong Hongyuan Dispensing Pump Co., Ltd. is a trusted partner for global brands, delivering innovative, durable, and visually appealing packaging solutions.



Our solid stick containers are made from high-quality, eco-friendly materials like HDPE and PP, known for excellent chemical resistance, strength, and airtight sealing. These durable materials help prevent product drying, leakage, or degradation, ensuring long-term performance across various conditions.pet jars manufacturers





We offer customizable options in size (10g–75g), shape (round, square, custom), and dispensing mechanisms (twist-up, magnetic, push-up). Surface finishes include matte, glossy, metallized, UV coating, silk screening, and laser engraving—enabling strong brand identity and shelf impact.



Ideal for solid perfumes, essential oil balms, deodorants, hand care, men’s grooming, and travel kits, our lightweight, pocket-sized packaging enhances user convenience and brand appeal.



We provide full OEM/ODM services, from concept development and 3D modeling to mold making, prototyping, testing, and mass production. Our experienced team ensures smooth project execution and on-time delivery.pet jars suppliers



Quality is our priority. ISO 9001 certified, we maintain strict quality control throughout production, using advanced injection molding and testing equipment.



Trusted by leading brands across Asia, Europe, and North America, we deliver packaging that combines functionality with elegance.



Partner with Guangdong Hongyuan Dispensing Pump Co., Ltd.—where innovation meets reliability.



Contact us today for free samples and custom design support!

Precision Dosing, Pure Sweetness — Guangdong Hongyuan Dispensing Pump Co., Ltd. | Professional Syrup Pump Solutions

In today’s rapidly evolving beverage, condiment, health supplement, and foodservice industries, precise, hygienic, and consistent liquid dispensing is key to enhancing product experience and operational efficiency. Guangdong Hongyuan Dispensing Pump Co., Ltd. specializes in the research and manufacturing of syrup dispensing pumps, offering efficient, durable, and safe dosing solutions for liquid sweeteners, concentrated juices, flavor syrups, functional beverages, and more.plastic lotion pump



Our syrup pumps are constructed from highly corrosion-resistant materials. The pump body and piston seals are made from food-grade polypropylene (PP), high-density polyethylene (HDPE), and fluororubber (FKM), ensuring excellent resistance to syrup corrosion, oxidation, and wear. Designed for long-term use, our pumps remain clog-free, leak-proof, and resistant to aging—delivering smooth and consistent performance with every press.plastic pumps



Available in multiple flow rates (1ml–10ml per stroke), our pumps enable precise control over the dispensing of high-viscosity liquids such as syrups, honey, and concentrates, minimizing waste and supporting brands in achieving a “use-only-what-you-need” sustainable approach. Ergonomically designed pump heads require minimal force to actuate, feature strong sealing performance, and prevent air ingress—effectively extending product shelf life.



Ideal for:



✔️ Carbonated beverage concentrates (e.g., for coffee shops and vending machines)



✔️ Household condiment syrups (maple syrup, honey, jam dispensers)



✔️ Functional beverages and nutritional supplements



✔️ Customized packaging systems for restaurant chains



We offer OEM/ODM services, customizing pump design based on bottle type, liquid viscosity, and dosage requirements. Our comprehensive service covers pump structure design, mold development, prototyping, testing, and mass production. A dedicated technical team provides full-cycle support—from design confirmation to mass production—ensuring fast and efficient project execution.treatment pump manufacturer



Quality is our promise. Certified under the ISO 9001 international quality management system, we maintain strict cleanroom production standards. Every product undergoes rigorous testing for sealing performance, pressure resistance, and cycle durability before shipment, ensuring consistent reliability.



Our syrup pumps are already successfully used by multiple domestic and international beverage brands and packaging solution providers, earning widespread recognition for their durability and precision.



Case Study: Guangdong Hongyuan Syrup Pumps Empower “SweetJoy” Beverage Chain to Achieve Efficient, Precise Drink Preparation

Client Name: SweetJoy Beverage Chain



Industry: Premium Tea & Coffee Chain



Challenge: Inconsistent drink formulation, excessive syrup waste, low staff efficiency



Solution: Custom syrup dispensing pump by Guangdong Hongyuan Dispensing Pump Co., Ltd.



Results: 90% reduction in syrup dosing error, over $42,000 USD annual cost savings, 50% shorter staff training time



Background

SweetJoy is a fast-growing premium tea and coffee chain with over 200 stores nationwide. As the brand expanded, the use of syrups—such as honey syrup, caramel, and flavored concentrates—increased significantly in its beverage recipes. However, traditional pouring or manual squeezing methods caused several issues:



Inconsistent syrup dosing, leading to variable drink taste;

Leakage during use, resulting in waste and messy workspaces;

Time-consuming operations, slowing down drink preparation during peak hours;

Poor sealing, causing syrup crystallization or bacterial growth.

To improve standardization and operational efficiency, SweetJoy decided to upgrade its back-of-house syrup packaging system and sought a professional pump supplier.



Solution: Customized Syrup Dosing Pump System

Upon receiving the request, Guangdong Hongyuan Dispensing Pump Co., Ltd. quickly assembled a project team, conducted on-site visits to SweetJoy stores, and delivered a tailored solution:



Pump Type: A piston-driven precision pump designed for high-viscosity syrups, with a fixed dosage of 5ml per stroke (adjustable for different drinks);

Material Optimization: Pump body made from food-grade PP, seals from corrosion-resistant FKM fluororubber, ensuring long-term durability and clog-free operation;

Leak-Proof Design: Dual-layer anti-drip valve structure prevents leakage even when inverted, significantly extending syrup shelf life;

Ergonomics: Soft-press pump head requires only 0.8kg of force for one-handed operation, reducing staff fatigue;

Compatibility: Designed to fit seamlessly with SweetJoy’s existing 1L syrup bag and external pump holder—no full packaging replacement needed, reducing costs.

From concept to first mass delivery, the project was completed in just six weeks, with full technical support provided by Hongyuan’s engineering team.



Results

Since the full rollout of the Hongyuan syrup pump system in Q2 2024, SweetJoy stores have seen significant improvements across multiple areas:



✅ Precision Dosing: Syrup error per drink reduced from ±1.5ml to ±0.2ml, ensuring consistent flavor and boosting customer satisfaction by 22%;



✅ Cost Savings: Reduced syrup waste by approximately 18%, saving over $42,000 USD annually;



✅ Efficiency Gains: Average drink preparation time reduced by 8 seconds, increasing peak-hour output by 15%;



✅ Hygiene & Cleanliness: Leak-free design reduces cleaning frequency; kitchen cleanliness received high marks during food safety audits;



✅ Brand Image Upgrade: Uniform, professional pump packaging enhances kitchen aesthetics and strengthens customer trust in brand quality.



Customer Testimonial

“Hongyuan’s syrup pump solved our long-standing standardization issues and delivered unexpected cost savings. Their team is responsive, highly capable in customization, and a trustworthy long-term partner.”



— Manager Li, Supply Chain Department, SweetJoy Beverages



Conclusion

This case study highlights the critical role of professional syrup pumps in modern beverage operations and chain scalability. With deep expertise in fluid dynamics, flexible OEM/ODM capabilities, and rigorous quality control, Guangdong Hongyuan Dispensing Pump Co., Ltd. continues to deliver reliable, high-performance packaging solutions for the food and beverage industry.



Whether you are a beverage brand, packaging manufacturer, or foodservice integrator, we can design a custom syrup pump solution to elevate your product and optimize your operations.



Contact the Hongyuan team today for free samples and technical consultation—start your journey toward precision dispensing!

New Benchmark for Body Lotion Pumps | Smooth Press × Precise Dispensing × Leak-Proof Seal | Direct Supply from Source Factory to Empower Premium Skincare Brand Experiences!

As consumers' demands for skincare experiences continue to rise, a lotion pump with smooth pressing, stable dispensing, no dripping, and high texture has become the "experience pinnacle" for products like body lotion, hand cream, and facial cream. Ordinary pumps often suffer from rough structures, poor sealing, and uneven dispensing, leading to user complaints about "jamming," "dripping," and "waste" that directly impact repurchases and brand reputation.



Guangdong Hongyuan Dispensing Pump Co., Ltd. — a 12-year professional lotion pump supplier and plastic lotion pump manufacturer specializing in liquid dispensing systems — has now mass-produced a full range of body lotion-specific pumps. Covering standard calibers of 24mm/28mm/33mm, these pumps are compatible with HDPE/PET/plastic bottles, helping brands create professional, clean, and enjoyable user experiences.

Product Name: Body Lotion Dispensing Pump

Core Advantages

✅ Smooth Press Experience: Optimized spring + piston structure enables one-handed, effortless pressing with no jamming or empty presses.

✅ Broad Compatibility: Suitable for low-viscosity lotions to high-viscosity hand creams and thick creams.

✅ High-End Aesthetics: Multiple finishes including electroplated silver, matte gold, transparent frosted, and gradient colors to match premium positioning.

Common Pain Points of Ordinary Lotion Pumps



❌ Rusty or fatigued springs → Failure after a few presses.

❌ Oversized dispensing holes → Dripping that contaminates bottle surfaces.

❌ Missing seals → Leakage during transportation, resulting in full-batch returns.

❌ Grease-intolerant materials → Swelling and deformation from long-term contact with lotions.

As a professional lotion pump manufacturer, Hongyuan has fully addressed industry challenges through careful material selection and structural design.



Cooperation Case: Empowering "Rouxi" Body Lotion to Enter the Japanese and Korean Markets

Domestic skincare brand "Rouxi" upgraded its premium body lotion packaging with our 28mm matte gold lotion pump + frosted PET bottle:

✅ User Review: "One press is enough for the whole body — no dripping, full of luxury."

✅ Successfully launched in Japan's Loft, South Korea's Olive Young, and Tmall Global.

✅ Repurchase rate increased to 58%, and average order value rose by 30%.



"This pump has elevated our product from an 'affordable alternative' to a 'texture-first choice.'"— Director Lin, Rouxi Product R&D Department

OEM/ODM Cooperation Models & Professional Services

As a leading lotion pump factory, we offer:

Standard Models: 24mm / 28mm / 33mm (for body lotion, hand cream, facial cream)

Minimum Order Quantity: 20,000 sets for standard models; 50,000 sets for custom models

Customization Support: Laser LOGO engraving, color matching, and special surface treatments

Full-Process Service: 3D modeling → Mold development (15–20 days) → Sampling → Mass production

Export Support: Provision of FDA test reports

Quality Commitment



All products are ISO 9001 quality management system certified. Each batch undergoes 7,000 press tests, drop tests, and sealing tests to ensure long-term stable and reliable use.



Choose Hongyuan Pump — your trusted lotion pump supplier, plastic lotion pump manufacturer, and hand cream pump expert with 12 years of dedication to skincare packaging innovation!

Contact us now to get body lotion pump samples + quotes + press life test videos!
