Packaging Procurement | An Article to Help You Quickly Grasp the Technical Principles, Production Processes and Application Scenarios of Lotion Pumps in Detail

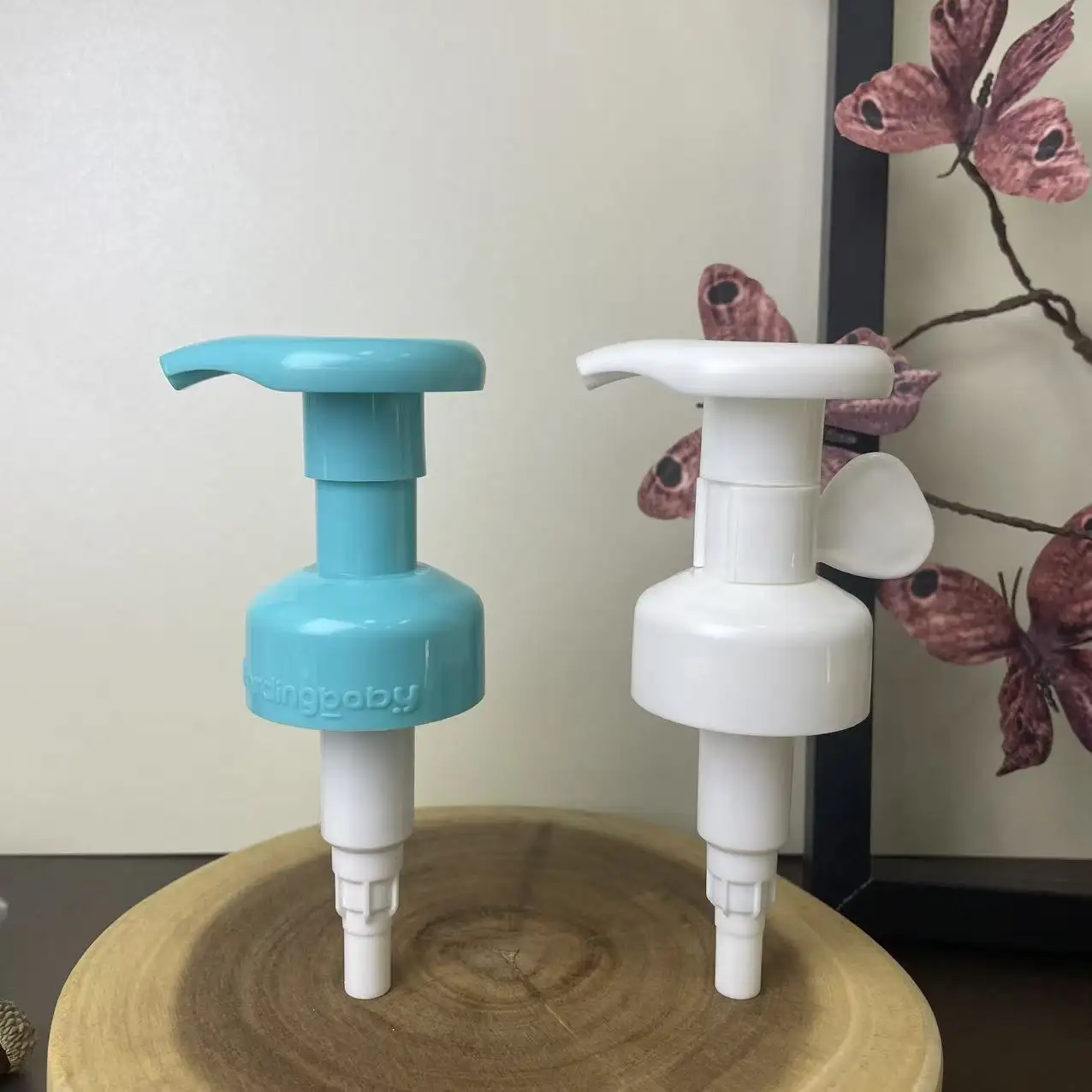

1.Definition of Lotion Pump: A lotion pump is a liquid quantitative distribution device widely used in daily chemical, pharmaceutical and other fields. It realizes precise control and output of liquids through a precision mechanical structure. It is a main supporting tool for taking out contents in cosmetic containers. It is a liquid distributor that uses the principle of atmospheric balance to pump out the liquid in the bottle by pressing and replenish the outside air into the bottle.


2.Product Structure and Manufacturing Process
（1）Structural Components


A conventional lotion pump head is usually composed of components such as a pressing nozzle/head, upper pump column, locking cap, gasket, bottle cap, pump plug, lower pump column, spring, pump body, glass ball, and suction tube. Depending on the structural design requirements of different pumps, the relevant components may vary, but their principles and ultimate purposes are consistent, which is to effectively take out the contents.

（2）Production Process


The majority of pump head components are primarily made from plastic materials such as PE, PP, and LDPE through injection molding. The main components of the pump head can undergo processes such as electroplating, anodized aluminum coating, spraying, and injection coloring.

3.Description of Pump Head Structure
（1）Product Classification Lotion pumps consist of core components including pump heads, pistons, springs, bottle caps, suction tubes, and locking rings.
- Conventional diameters: Ф18, Ф20, Ф22, Ф24, Ф28, Ф33, Ф38, etc.

- Classified by structure: external spring pump, plastic spring pump

- Classified by pumping volume: 0.15/0.2cc, 0.5/0.7cc, 1.0/2.0cc, 3.5cc, 5.0cc, 10cc and above

（2）Performance Indicators
Key performance metrics include:

- Number of priming strokes

- Dispensing volume per stroke

- Pressing force required

- Torque for opening the pump head

- Rebound speed

- Inlet flow rate

（3）Difference Between Internal and External Springs
- External Spring: Does not contact the product, eliminating risk of contamination from rust.

（4）Quantitative Dispensing Mechanism
- Single-dose volume controlled by adjusting chamber size (typically 0.3–5mL) and piston stroke.

- Accuracy within ±5%, suitable for precise dispensing of various viscosities.

External pumps (external springs): For sprayers and pump heads, you should know that a spring needs to be placed inside the center of the product. An external pump means the spring in the center of the sprayer/pump head is externally visible, usually placed above the pump core, and directly connected to the sprayer/pump head cap during assembly. The advantage of external pumps is that they do not directly contact the liquid in the bottle, which is both environmentally friendly and hygienic. They can also 100% avoid the possibility of rust from individual springs (though this is extremely rare, as most springs are treated) affecting the quality of the product inside the bottle. In addition, the force of external pumps is relatively stronger than that of internal pumps, so they are more commonly used for pump heads, especially suitable for thick liquids such as lotion concentrates.





External lotion pumps (external springs)
Advantages:




Good anti-pollution performance: The spring does not directly contact the contents, avoiding contamination of the contents due to spring rust and better ensuring product quality and hygiene.
Strong pumping force: The spring, located externally, is less restricted by the internal space of the pump body. It can be designed to be larger and more elastic, making it easier to pump high-viscosity liquids such as emulsions containing particles or petals.



Disadvantages: The appearance may be relatively more complex than internal pumps, and the design may not be as concise as internal ones.






Internal pumps (internal springs): In contrast to external pumps, internal pumps have the spring in the center of the sprayer/pump head hidden internally, usually located in the middle of the pump body. The internal spring can directly contact the liquid, and the pressing force is slightly weaker than that of external pumps. They are generally used for products such as health care essential oils, perfumes, and skincare toners, which have a consistency close to water.





Internal lotion pumps (internal springs)
Advantages:




Compact structure: Components such as the spring are located inside the pump body, resulting in a compact overall structure that takes up little space. It is an ideal choice for packaging designs with limited space or small containers.
Lower cost: The manufacturing process is relatively simple, with no need for additional external spring installation structures, leading to lower production costs.
Concise appearance: Without the abruptness of an external spring, the overall appearance is more concise and aesthetically pleasing, blending better with the container and the overall style of the product.



Disadvantages:




Prone to contamination: The spring directly contacts the contents. If the spring rusts or is made of poor-quality materials, it may contaminate the contents, affecting product quality and usage effect.
Relatively weaker pumping force: Due to space constraints inside the pump body, the elasticity and pumping force of internal springs are relatively weaker than those of external ones, resulting in less effective pumping for high-viscosity liquids.



The above is an explanation of some sprayer/pump head products. We hope it will be helpful to you!

A pump is a mechanical device that uses the principle of creating a vacuum through pressure to release the contents in a predetermined form while maintaining sealing performance.





After decades of development, pumps have become deeply integrated into various aspects of daily life. Their functionality, appearance, and practicality have significantly improved. The following provides a brief overview of the development history, working principles, and testing standards of various types of pumps.




Guangdong Hongyuan, after over a decade of development, has become an outstanding plastic shampoo pump bottles supplier and plastic lotion pump supplier, and is also a manufacturer of plastic lotion pumps and plastic bottles.





The History of Pumps

According to historical records, as early as 500 years ago during the Ming Dynasty's Zhengtong 14th year (AD 1449), China was already widely using such dispensers, which were then referred to as “water dragons.” .






“Water dragon” was the colloquial term for fire extinguishers in ancient times: it consisted of a wooden barrel approximately 0.8 meters in height and width, and 1 meter in length, along with several water buckets, water hoses, and spray nozzles. A cross-shaped wooden pad was installed at the bottom of the barrel to ensure stable placement. Two copper-cast syringes were placed side by side inside a large wooden barrel. Each syringe contained a piston that could be moved up and down, with inlet and outlet valves inside. The piston was connected to a lever above it; pressing the lever caused water to spray out. On either side of the barrel walls are two movable iron rings, allowing two people to carry the water cannon while two others assist by holding the handles with one hand, reducing the load on the carriers and accelerating the response time to save water.



The development of distributors also reflects the contrast between the modern history of China and the West. Industrial production and consumer demand drove the rapid development of distributors in Europe and America. The earliest innovation was the valve.



The concept of the aerosol valve originated in 1790 with the introduction of a pressurized carbonated beverage in France.



In 1837, an inventor named Perpigna created an aerosol bottle containing soda water.



In 1899, inventors Herlbling and Pertsch applied for the first patent for an aerosol can using methyl and ethyl chlorides as propellants.



In 1930, French cosmetics giant L’Oreal invented lotion. However, at that time, there was no convenient dispensing device like a lotion pump, and lids (such as screw caps, butterfly caps, or even aluminum cans) were commonly used. To this day, a significant portion of the market in Europe and the United States still uses lids for large-sized shampoo and shower gel products. The main reasons are: first, traditional usage habits, and second, environmental considerations.



In 1966, an eighth-grade student in Quebec, Canada, invented the first lotion pump during a science experiment using a ballpoint pen and a tube. A major hand sanitizer company later utilized this design to develop a lotion pump head that could be mass-produced (and out of respect, did not apply for a patent), which became the prototype for the pump head structure we commonly see today.





In 1996, a company in Europe and the United States faced litigation due to a design flaw in the lotion pump head used in baby products, which caused water ingress issues. As a result, three global companies began developing the waterproof pump head that would lead the trend for decades. The lotion pump head entered a new era.



In 2013, a domestic manufacturer in China responded to the new market demands of the global consumer goods giant Unilever and launched the world's first lotion pump specifically designed for e-commerce channels.





Use Case Analysis and Prospects

Lotion pump products are widely applied in packaging for daily chemical products, cosmetics, and pharmaceuticals, including beauty, hair care,like snap bottle,snap on sprayer, and cleaning products. Their main features include simple structure, stable functionality, ease of use, environmental friendliness and aesthetic appeal, high quality at affordable prices, broad applicability, significant market potential, and strong demand.



Since the beginning of the 21st century, China's personal care and packaging industries have faced unprecedented development opportunities. The personal care product packaging industry is also evolving into a rapidly advancing, high-value-added, and increasingly large-scale emerging industry!



Guangdong Hongyuan's production lines for lotion pumps, PE bottles, and PET plastic bottles are now highly mature. The company not only possesses advanced technical equipment but also a stable and reliable team.

As a source service provider deeply rooted in the daily chemical packaging material industry, we focus on supplying lotion pumps, fine mist sprayers, and plastic bottles. Leveraging our direct supply advantages from lotion pump factories, plastic container manufacturers, and fine mist sprayer manufacturers, coupled with our diverse service capabilities as a plastic lotion pump manufacturer and supplier, we create one-stop packaging solutions that combine quality and aesthetics for daily chemical brands.






Core Product 1: Lotion Pump Series – Precise Fit, Worry-Free Sealing



Leveraging the professional production capabilities of our lotion pump factory, our 2cc, 4cc, and 5cc lotion pump series encompass plastic pump heads and custom-designed models. We maintain the stringent quality control standards of a plastic lotion pump manufacturer:



Precise Dispensing: Adaptable to various textures such as hand soap, shampoo, and shower gel, we ensure consistent dispensing for each pump head, preventing waste.



Leak-Proof Sealing: Utilizing standard-compliant PP material and an upgraded sealing structure, our pump head ensures complete protection against air and bacteria, extending the shelf life of daily chemical products.



Flexible Customization: Supports personalized designs for colors, logos, and pump head shapes, compatible with glossy and matte finishes, precisely matching the brand's visual identity.





Core Product 2: Fine Spray Series – Delicate Atomization, Suitable for Diverse Scenarios



As a professional fine mist sprayer manufacturer, we have created a comprehensive spray product system covering all needs, including fine mist sprayers, bottle fine mist sprayers, fine mist spray bottles, fine misters, and spray pump heads, balancing practicality and aesthetics: Fine Atomization: Uniform and delicate spray particles; fine mist spray bottles offer a wide spray range; fine misters provide a soft atomization effect, suitable for products like floral water.



Durable and Sealed: (Bottle mist sprayer) The bottle-type fine mist sprayer boasts a strong seal, preventing leaks and corrosion. (Mist pump sprayer) The spray pump head offers smooth operation, a long service life, and is resistant to jamming even with repeated use.



Customizable Options: Pump head color and bottle body combinations can be customized to your needs. (Fine mist sprayer manufacturer) We provide complete spray packaging solutions to meet diverse brand requirements.



Core Product Three: Plastic Bottle Series – Safe, Versatile, and Widely Adaptable



As a seasoned plastic container manufacturer and plastic bottle supplier, our plastic bottle supply system covers all scenarios, focusing on environmentally friendly series such as PE (polyethylene) bottles, HDPE bottles, and PE bottles:



Safe Materials: Made from carefully selected PET, HDPE, and PE materials, PE bottles are odorless and resistant to acids and alkalis, while HDPE bottles are highly durable and meet global standards for daily chemical packaging.



Complete Specifications: Capacities from 100ml to 2L are available, covering mainstream bottle shapes such as round, square, and oval. PE bottles are suitable for travel sizes, full-size bottles, and other scenarios. We can also meet the needs of emulsion pumps, fine sprayers, and other accessories, precisely matching various daily chemical products.



Comprehensive Craftsmanship: Customizable bottle textures and colors significantly enhance product shelf visibility.



Supply Chain Advantages:Direct supply for peace of mind and comprehensive assurance. Direct sourcing from the origin: With a core network of lotion pump manufacturers, plastic container manufacturers, and fine mist sprayer manufacturers, there are no middlemen adding markups. Bulk purchases enjoy tiered discounts, while small-batch trial production offers exceptional value.



Synchronous Compatibility: Pump heads from plastic lotion pump manufacturers and spray components from fine mist sprayer manufacturers precisely match the bottles supplied by plastic bottle suppliers, eliminating the need for additional adaptation and shortening production cycles.



Compliance Guaranteed: All lotion pumps, fine mist sprayers, and plastic bottles undergo quality testing and can provide COA (Certificate of Account) reports, helping brands penetrate domestic and international markets.



Compliance Guaranteed:All lotion pumps, fine mist sprayers, and plastic bottles pass quality inspections and can be provided with COA reports, helping brands penetrate domestic and international markets. Guangdong Hongyuan Supply Chain, using core products such as plastic pump heads, PE plastic bottles, and fine mist spray bottles as links, integrates resources across the entire supply chain, including lotion pump factories, plastic lotion pump suppliers, and fine mist sprayer manufacturers, injecting new vitality into the daily chemical packaging materials industry and ensuring that every product enjoys high-quality packaging support!

The Touch of Quality: Enhanced by Our Double-Bead Pump



Double Glass Bead Pump Head (commonly known as a "double bead pump" or "double ball pump") is an efficient liquid dispensing design and a key component in many plastic packaging for products solutions. It is widely used, especially in cosmetics, skincare, personal care, and cleaning products.







For plastic lotion pump suppliers and lotion pump factories, this is one of their core products. Its core working principle utilizes two glass beads acting as one-way valves to control liquid flow. Below are the main benefits and advantages of the double glass bead pump head, explained in detail across several aspects:





I.Core Functional & Performance Advantages



1.Precise Dosing & Stable Dispensing: This is its greatest advantage. The internal mechanical structure (piston, spring, etc.) works in synergy with the two beads to ensure a fixed and consistent amount of liquid is dispensed with each press.



This is crucial for products requiring precise dosage (like serums, ampoules, high-concentration actives), avoiding waste and helping users control cost. For an excellent plastic container supplier, matching clients with accurate pumps is key to enhancing packaging value.





2. Excellent Sealing & Leak Prevention: The two glass beads act as the "suction valve" and "discharge valve" respectively. When not pressed, the beads sit tightly against their seats due to gravity or internal pressure, forming a tight seal that effectively prevents air ingress and liquid leakage. This makes products ideal for travel; even if turned upside down in a bag, they won't leak, ensuring packaging neatness and safety. This is particularly important for products like hand soap dispenser pumps and hand lotion pumps often placed in humid environments.







3.Strong Suitability for High-Viscosity Liquids: The double bead structure generates strong suction, enabling it to easily handle liquids from watery to lotion-like, gel-like, and of medium to relatively high viscosity.





This is a key advantage for many serums, lotions, shampoos, and body washes. Therefore, lotion pump factories often adopt this design to ensure the smooth dispensing of thick liquids.




Effective Locking Function (with twist or lift mechanism): Most double glass bead pump heads are equipped with a locking device. Upon first use, it usually requires twisting or lifting the pump head to release the locked state.



This lock function further enhances safety during transportation and storage, preventing leakage caused by accidental pressing. This is a standard feature offered by plastic lotion pump suppliers to assure clients of transport safety.





II.User Experience & Product Quality Advantages

1.Great User Experience & Smooth Operation: High-quality double bead pumps offer smooth pressing and quick rebound, providing a satisfying "damped feel" and "crisp sensation," often associated by consumers with "high quality." An excellent hand lotion pump can significantly enhance the user's daily experience.



2.Maintains Product Purity & Reduces Contamination: The pump head is a closed dispensing system. Liquid only flows out, not in, preventing users from repeatedly opening the cap and allowing air and bacteria to enter. This helps protect the remaining product from contamination and oxidation, preserving the formula's activity and hygiene. This is especially important for products without preservatives or those with high active ingredient content.



3.Convenient and Hygienic Use: It requires only one-handed operation, no pouring or dipping, making usage convenient and hygienic. This is the very purpose of the hand soap dispenser pump design – to provide a clean, touch-free or minimal-contact dispensing experience.





III.Commercial & Packaging Advantages



Enhances Product Grade & Aesthetics: Refined pump head designs (such as electroplated, matte, colored finishes) can significantly enhance the overall texture and aesthetics of the packaging, making the product more attractive on the shelf. For a plastic container supplier, offering diverse pump head design options is a crucial part of meeting clients' needs for brand differentiation.





Controls Dosage & Saves Costs: For brands, quantitative dispensing means better control over the consumer's single-use amount, avoiding product waste caused by overuse, thus indirectly controlling costs.





Summary & Application Scenarios

In summary, the main benefits of the double glass bead pump head can be summarized as:



For Brands & Suppliers (e.g., plastic container supplier, plastic lotion pump supplier): Premium packaging, leak-proof sealing, quantitative control, wide applicability.



For Consumers: Precise dosage, convenient use, hygienic and safe, good hand feel, portable.



It is particularly suitable for the following types of products:



Skincare: Body lotion,lotion, essential oils.

Personal Care: Shampoo, body wash, hand soap (especially refills).

Home Cleaning: Concentrated cleaners, fabric softeners, etc.



For any lotion pump factory or manufacturer involved in plastic packaging for products, the double glass bead pump head is a durable, reliable, and popular classic choice.
